Gearless Traction Machine Mini2
Product Attributes
Model No.: MINI2-1
Brand: XINDA
Origin: Zhejiang, China (Mainland)
Certification: CE / ISO9001 / ISO14001
Supply Ability & Additional Information
Packaging: Wood Carton
Productivity: 80000/year
Transportation: Ocean
Place of Origin: Zhejiang, China (Mainland)
Certificate: CE / ISO9001 / ISO14001
HS Code: 84253190
Port: Ningbo
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Packaging & Delivery
Selling Units:
Set/Sets
Package Type:
Wood Carton

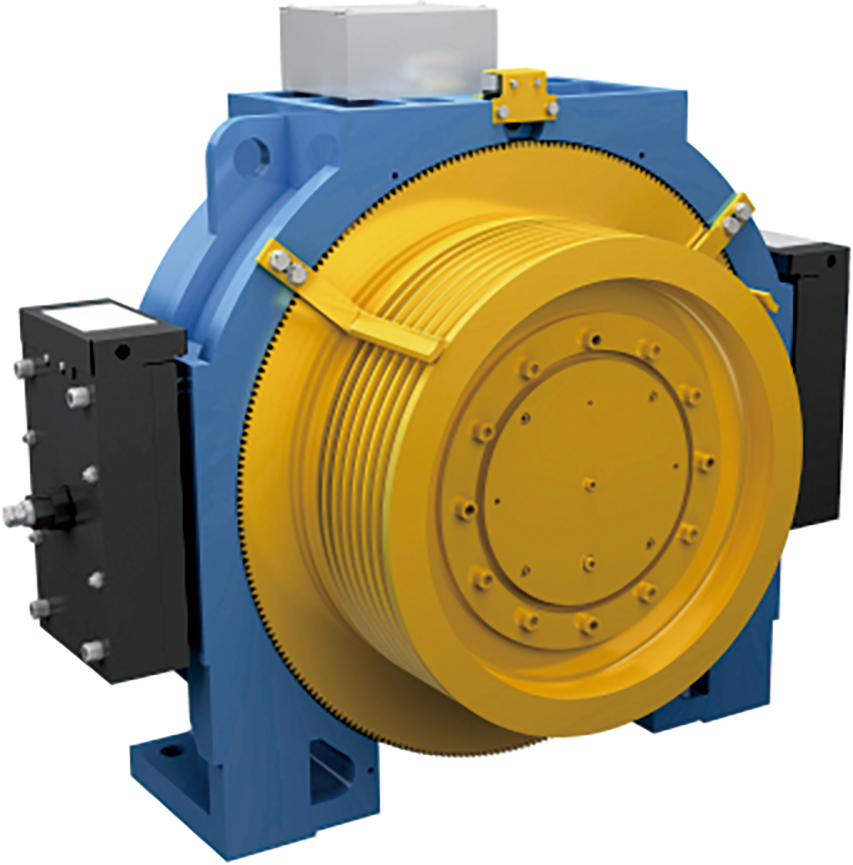

Xinda Gearless Lift Traction Machines MINI2
Packaging & Delivery
Delivery Detail: 30 days after T/T in advance
Product Description
This series of Gearless Machine adopts an outer rotor structure and a unique fixed center axis design, making the stress of the host machine more reasonable.
The excellent magnetic field design allows the host to run smoothly with low noise and low temperature rise.
Product Characteristics
Traction ratio: 1:1 ,2:1
Rated capacity: 800,1000,1250,1350,1600,2000,2500 kg
Rated elevator speed: 1,1.6,1.75,2,2.5 m/s
Max. lifting height: 120m
Max. shaft load: 6000kg
Applicable converter: 3 phase 400V
Brake voltage: DC110V
Number of motor poles: 32 poles
Traction sheave diameter: Ø 410/500mm
IP code:IP41

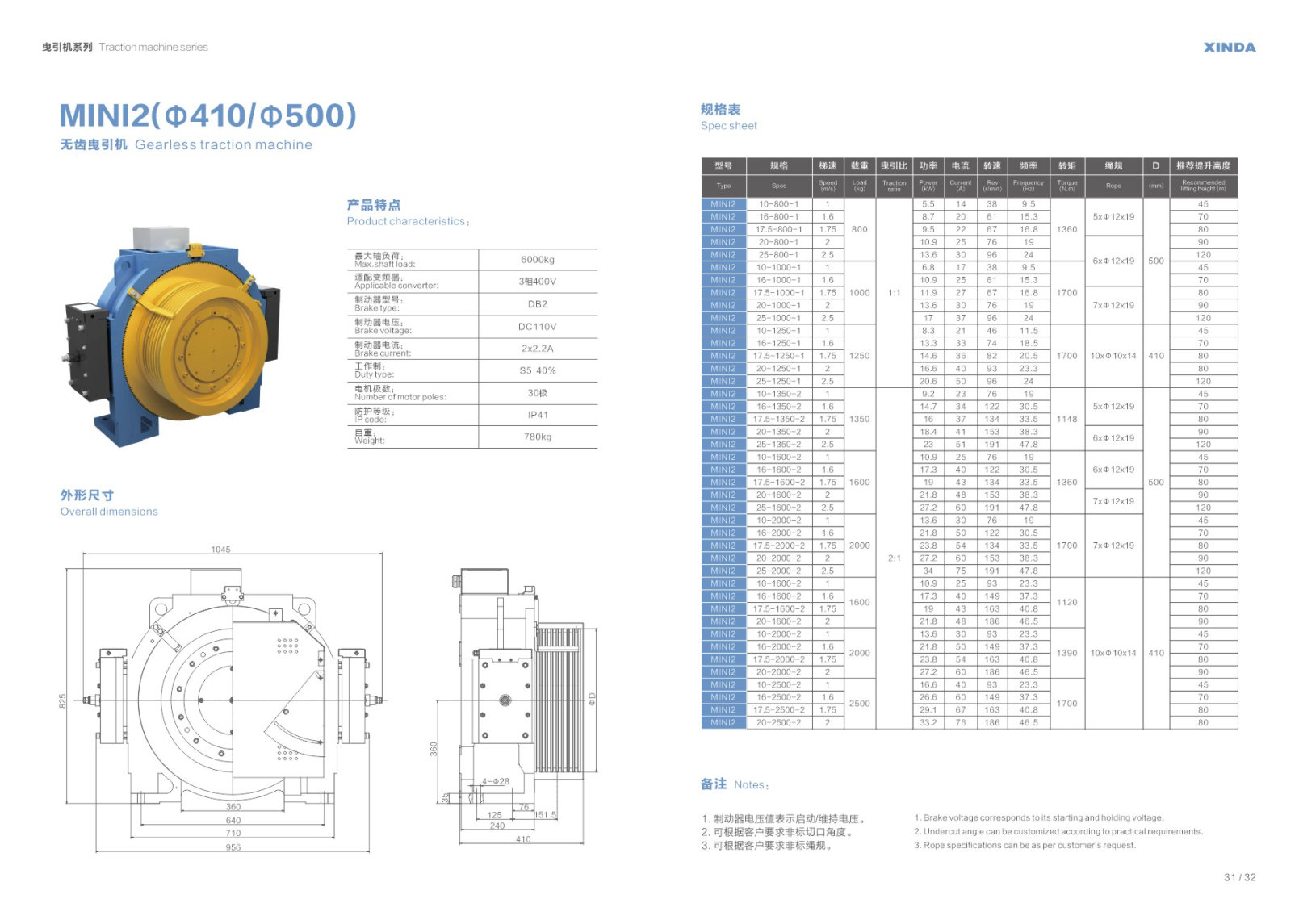

Overall & Installation Dimensions:
Specifications:
Product Categories : Elevator Traction Machine > Gearless Traction Machine
